Holybro Kakute F7 V1.5 Flight Controller & ATLATL HV V2 & Tekko32 F3 4in1 40A ESC Combo for RC FPV Drone

The Holybro Kakute F7 flight controller makes it easy to build your multirotor. It integrates flight controller (FC) and on-screen display (OSD) in one. The Kakute F7’s layout makes it easy to wire up the other components of the multirotor while keeping the build neat and tidy.
IMU updated to MPU6000, Re-designed and more reliable damping structure

Features

  • Supports Betaflight, Butterflight, and Cleanflight.
  • Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.
  • Soft-mounting built-in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.
  • High-performance / low-noise / high sensitivity IMU. MPU6000 with 6-axis gyro and accelerometer.
  • Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
  • Dedicated bootloader button for easy firmware flashing.
  • Low-profile design fits into even very compact frames.
  • Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on the “B+” pad only).
  • Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 monitors voltage directly from the power supply.
  • Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.
  • Supports BLHeli pass-through for easy ESC upgrade and configuration.

Specifications

  • MCU: STM32F745 32-bit processor
  • IMU: MPU6000 (SPI)
  • Barometer: BMP280
  • Current Sensor: Approximately 130 amps of maximum measurable value
  • USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
  • 6 hardware UARTS (UART1,2,3,4,6,7)
  • All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvent hack”.
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
  • TF card for Blackbox logging
  • Dimensions: 35x41x7mm (includes foam-mounted gyro board in height)
  • Mounting Holes: Standard 30.5mm square to centre of holes
  • Weight: 8g

Manual:
Holybro_Kakute_F7_V1.5_Manual.pdf

The Holybro Kakute F7 AIO All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), and on-screen display (OSD) in one. The Kakute F7 AIO’s layout makes it easy to wire up the other components of the multirotor while keeping the build neat and tidy.

Features
• Supports Betaflight, Butterflight, and Cleanflight.
• Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.
• Soft-mounting built-in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.
• High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up to 32 kHz sampling rate.
• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
• 2 oz. copper PCB allows up to 120A maximum continuous current.
• Dedicated bootloader button for easy firmware flashing.
• Low-profile design fits into even very compact frames.
• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on the “B+” pad only).
• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 AIO monitors voltage directly from the battery power lead.
• Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.
• Supports BLHeli pass-through for easy ESC upgrade and configuration.

Specifications
• MCU: STM32F745 32-bit processor
• IMU: ICM20689 (SPI)
• Barometer: BMP280
• Current Sensor: Approximately 130 amps of maximum measurable value
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 6 hardware UARTS (UART1,2,3,4,6,7)
• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
• TF card for Blackbox logging
• Dimensions: 35x48x7mm (includes foam-mounted gyro board in height)
• Mounting Holes: Standard 30.5mm square to centre of holes
• Weight: 11g

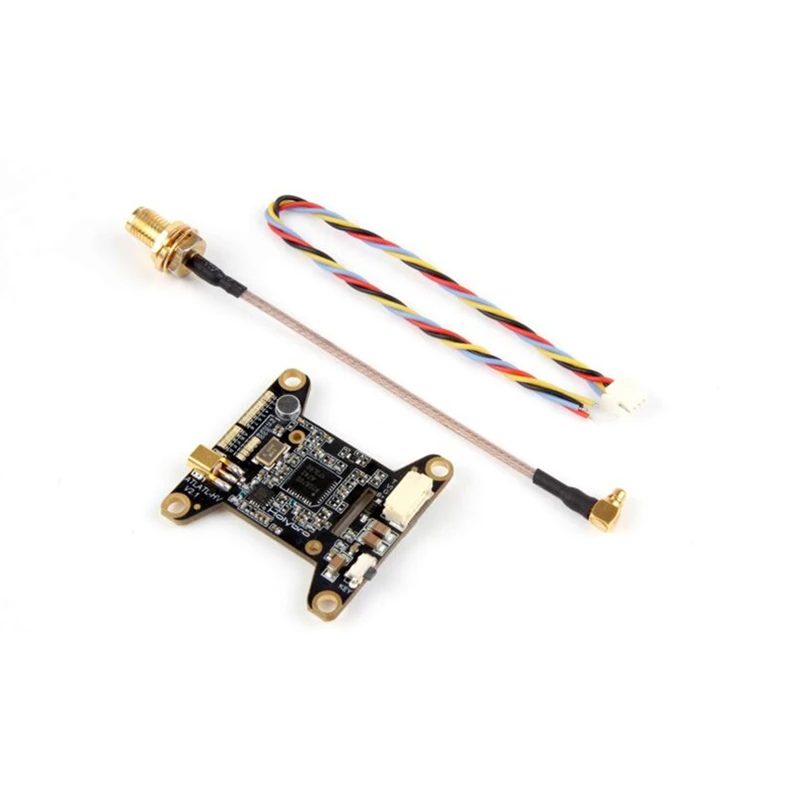

Atlatl HV V2

Features

  • Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.

  • Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.

  • SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.

  • All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.

  • MMCX connector is durable and easy to use. Rated for 100rsquos of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.

  • LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.

  • Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.

  • 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.

  • Built-in microphone, so you can listen to your motors while you fly, no matter how far away you fly.

  • The standard 36mm form factor allows you to mount the Atlatl directly on your flight controller stack.

Specifications

  • Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
  • Audio: 6.5 MHz Mono
  • Antenna Connector: MMCX
  • Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum of 42 volts
  • Dimensions: 35x25x7mm (Includes USB height)
  • Mounting Holes: Standard 30.5mm square to centre of holes
  • Weight: 9.3g
