Hubsan ZINO Mini PRO 249g GPS 10KM FPV with 4K 30fps Camera 3D Obstacle Sensing 40mins Flight Time RC Drone Quadcopter RTF Plane
Hubsan ZINO Mini PRO 249g GPS 10KM FPV with 4K 30fps Camera 3D Obstacle Sensing 40mins Flight Time RC Drone Quadcopter RTF Plane

ZINO Mini PRO GPS 10KM FPV with 4K 30fps Camera 3D Obstacle Sensing 40mins Flight Time RC Drone

0% of buyers enjoyed this product! 8 orders
List price:
Price:
You save:
(%)
List price:
Price:
You save:
()
()
US $0.00 Standard Shipping
28 days
Total Price:
Best price guarantee
Quantity:
View cart
Please wait, we try to get a transaction confirmation as soon as possible.
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide
Product Details
Item Specifics
Product Details



ZINO Mini PRO GPS 10KM FPV with 4K 30fps Camera 3D Obstacle Sensing 40mins Flight Time RC Drone

Specifications:

Aircraft

Dimensions

Unfolded: 202.54×161.2×61.6mm
Folded: 137x88x61.6mm
Folded with Propeller: 137x94x61.6mm

Diagonal Wheelbase

220mm

Color

Gray

Takeoff Weight(with battery)

Standard:249g(Europe and America), 200g (Japan)

Hover Accuracy

Vertical: ± 0.1m (when the visual positioning is working normally)
± 0.5m (when GPS is working normally)
Level: ± 0.3m (when the visual positioning is working normally)
± 1.5m (when GPS is working normally)

Max Rotational Speed

130°/s (S), 60°/s (N), 25°/s (F)

Max Ascension Speed

3m/s (N), 4m/s (S), 2m/s (F)

Max Descent Speed

3m/s (N), 3.5m/s (S), 1.5m/s (F)

Maximum Horizontal Flying Speed (Windless at Sea Level)

10m/s (N)
16m/s (S)

Maximum Take-off Altitude

4000m

Max Wind Speed Resistance

5-level (8.5-10.5m/s)

Max Tilt Angle

40°(S), 25°(N), 15°(F)

Positioning

GPS + GLONASS

Max Flying Time

40 minutes(measured while flying at 25km/h in windless conditions)

Power System

Maximum Working Current

16A

Propeller

Model: Foldable & Diameter 125.6mm
Color: Black

Motor

Outward Rotation Brushless Motor
1503, KV2820

ESC

Digital ESC Brushless 20A x 4

Camera

CMOS Image Sensor

1/1.3inch CMOS Sensor
2.4um Mixed Large Pixel
48 million Effective Pixels

Lens Specifications

FOV 84°
Aperture f/1.85
EFL: 6.8mm
Focus Point: 0.5m to ∞
Distortion: <1.5%

Maximum Photo Size

8000 x 6000

Maximum Video Encoding

4K@30fps

Video Resolution

4K: 3840 x 2160 @ 30fps
2.7K: 2720 x 1530 @ 30/60fps
FHD: 1920 x 1080 @ 30/60fps

Electronic Shutter Speed

3-1/8000s

Video BitrateVideo Bitrate

100Mbps-200Mbps

Supported File Systems

FAT32 (≤32 GB)
exFAT (>32 GB)

Photo Format

JPEG

Video Format

MP4 (H.265/HEVC)

Firmware Upgrade

APP Online Upgrade

Supported SD Cards

MicroSD Card, U3 or Class10 above
16G/32G/64G/128G

Image Transmission

Image Transmission System

SyncLeas 3

Working Band

5.725-5.850 GHz

MaxTransmission Distance

FCC: 10KM
CE: 6KM; SRRC: 6KM

Average Vit Rate

20 Mbps

Transmission Delay

<=200ms

Antenna

Built-in Dual Antenna

Transmission Power (EIRP)

FCC: <=26dbm; CE: <=20dbm; SRRC: <=20dbm

Max Video Bitrate

40 Mbps

Remote Control

HT018Y

Gimbal

Gimbal

HY817D

Stabilization

3-Axis (tilt, roll, pan)

Degree of Freedom

Triaxial

Max Pitch Speed

120°/s

Mechanical Range

Pitch: -120° to 45°
Roll: ± 35°
Yaw: ± 35°

Damping Method

Three-dimensional Shock Absorption

Flight Controller

FC Version

Self-developed Third-generation Flight Controller

Basic Flight Mode

Sports Mode / Normal Mode / Movie Mode

Altitude Hold Mode

Tof, Barometer

Fixed-point

Visual Optical Flow, GPS

Unlock/Lock

Outer “Eight” Unlock/Lock

One Key Take-off/Landing

APP Supported,Remote Control Unsupported

Headless Mode

Out of Control Protection

Low Battery Return

Home Visual Recognition

(search for drone apron)

Visual Tracking

Third-generation Tracking Technology (ATVT 3.0)

Waypoint Flight

Flying Around

Ray Flight

Time-lapse Photography

TBD

Motor Stall Protection

Firmware Upgrade

APP Online Upgrade

Sensing System

Forward

Binocular Visual Perception,Precision Measurement Distance <12M
Fluctuate <0.5M, Perception Distance >15M

Backward

Binocular Visual Perception,Precision Measurement Distance <12M
Fluctuate <0.5M, Perception Distance >15M

Downward

Monocular Optical Flow, Tof Ranging
Effective Ranging Range 0.3-5M,Fluctuate <0.1M

Remote Control

Color

Gary

Operating Frequency

5.725-5.850 GHz

Display

Highlight LED Display

Operating Environment Temperature

-10 Deg.C- 60 Deg.C

Maximum Effective Signal Distance

5.8Ghz FCC: 10KM
CE: 6KM; SRRC: 6KM

Equivalent Isotropic Radiated Power

FCC: <=26dBm; CE: <=20dBm;
SRRC: <=20dBm

Built-In Battery

3350mAh

Mode

Mode 2 (Left Hand Throttle)

Buzzer

Support

Support Mobile System

Android, iOS

Working Time

2.5h (Normal Flight Time)

Rocker Back to Center Accuracy

4%

Interfaces Type

Lighting / Micro USB / Type-C

Battery

Battery Type

Lithium Battery

Capacity

3000 mAh

Standard Voltage

3.6×2=7.2V

Charging Limit Voltage

7.25V

Discharge Rate

8C

Charging Time

90 minutes

Weight

101.84g

Working Environment Temperature

0 Deg.C- 50 Deg.C

Charging Environment Temperature

0 Deg.C- 40 Deg.C

Smart Battery Balance

Intelligent Power Management

Automatic Discharge Protection

APP

APP Name

X-Hubsan 2

Mobile Device

Requirements

iOS 10.0 or higher
Android 6.0 Or higher

Features:

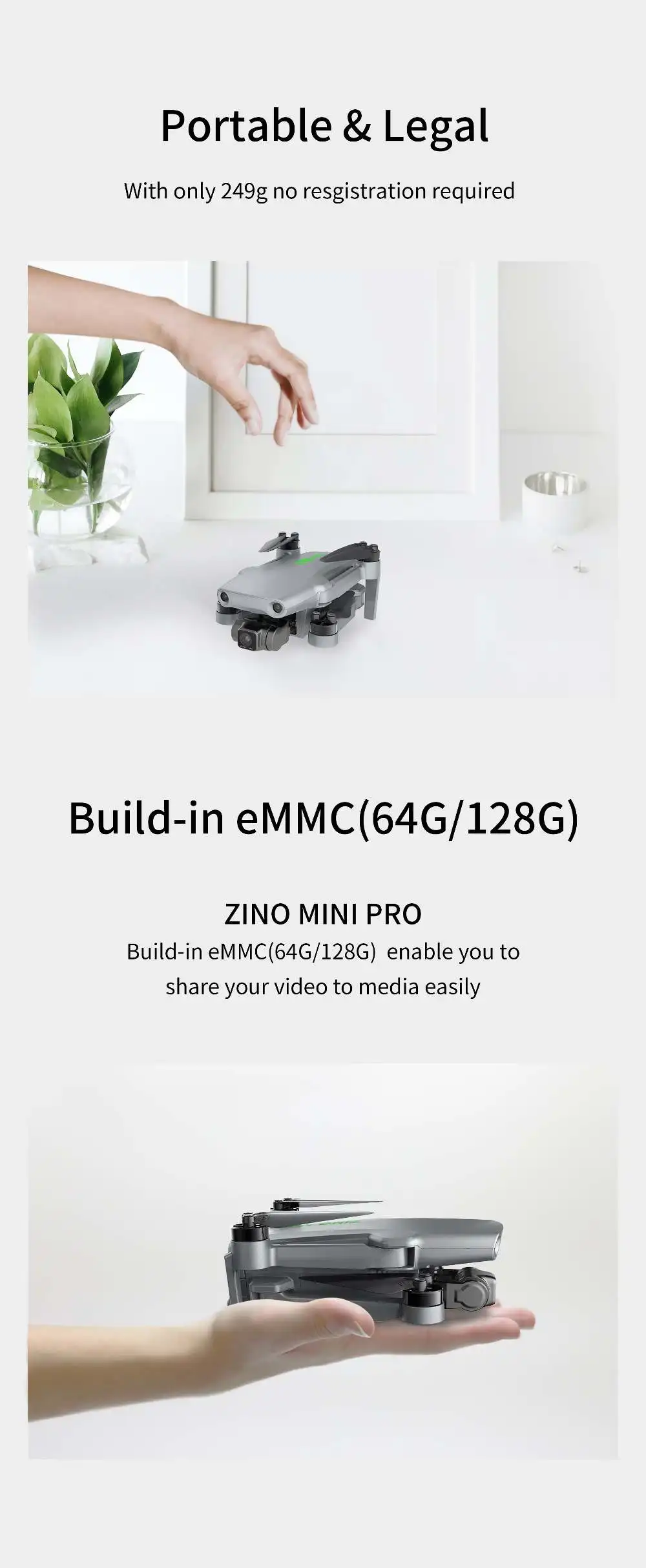

– 249gm Lightweight & Foldable Design
-Front/Back/Down 3-Direction Obstacle Avoidance
-Up to 40 Minutes of Flight Time
-10KM Remote Control Distance
– 3-Axis Gimbal with 4K/30fps Video
– 1/1.3“ CMOS sensor
– f/1.85 super large aperture
– Hubsan Syncleas.3.0 1080P/30fps 20 Mbps 10 KM
– Up to 6x Zoom
– Optical-flow night light
– ATVT 3.0 Al Tracking Mode
– Enhanced HDR Photos
– Built-in intelligent flight battery

Package Included:

1 x ZINO Mini PRO RC Drone
1 x Remote Control

1 x Battery
2 x Blade
2 x Blade Screw
1 x Charger
1 x Remote Control USB Charging Cable

1 x Screwdriver
1 x English Manual












Item Specifics
Camera Features:
4K HD Video Recording
Origin:
CN(Origin)
Camera Integration:
Camera Included
Certification:
NONE
Sensor Size:
None
Remote Distance:
1200M
Gyro:
y
Aerial Photography:
Yes
Optical Zoom:
Fixed Focus
FPV Operration:
Yes
Main Rotor Diameter:
0
Control Channels:
8 Channels
Frequency:
5.8GHz
Model Number:
ZINO Mini PRO
Connectivity:
APP Controller
Connectivity:
Remote Control
Connectivity:
Wi-Fi Connection
Pixels:
20 million
Flight Time:
Others
